Gabion Basket

Brand Name : Chunrong

Certification : ISO9001,ISO14001,OHSAS18001,CE

Place of Origin : Xin Gang,Tianjin, China

MOQ : 100

Contact Now

The fabric of Galvanized Gabion Basket shall be triple-twisted hexagonal woven steel wire mesh complying with BS 1052. All wire used in the manufacture of the basket, diaphragm, binding, and connecting wire shall be galvanized as specified in BS 443, EN: 10244-2 with a coating of zinc by an electrolytic galvanizing process. The minimum weight of galvanizing shall be as given in Table. Zinc coatings shall be uniform and at all points more than 25 mm from a cut end, the coating shall be able to withstand a minimum number of dips and adhesion tests specified as per EN: 10244-2.

Specifications:

Gabion Basket Size			Mesh Gride Size
			80x100mm		60x80mm
Length(m)	Width(m)	Height(m)	Galvanized or PVC coated		Galvanized or PVC coated
			Mesh wire dia.(mm)	Zinc mass(g/m²)	Mesh wire dia.(mm)	Zinc mass(g/m²)
2	1	1	2.7	>245	2.2	215
3	1	1	Mesh wire dia.(mm)	Zinc mass(g/m²)	Mesh wire dia.(mm)	Zinc mass(g/m²)
4	1	1	3.4	>265	2.7	>245
6	1	1	Binding wire dia.(mm) 2.2mm		Binding wire dia.(mm) 2.2mm

Application:
The appropriate conditions of Galvanized Gabion Basket for use
● Dry conditions
● Subjected to short periods of contact with water
● Not to be submerged below water level
● Used in non corrosive soil & non corrosive water quality applications

Gabion Basket

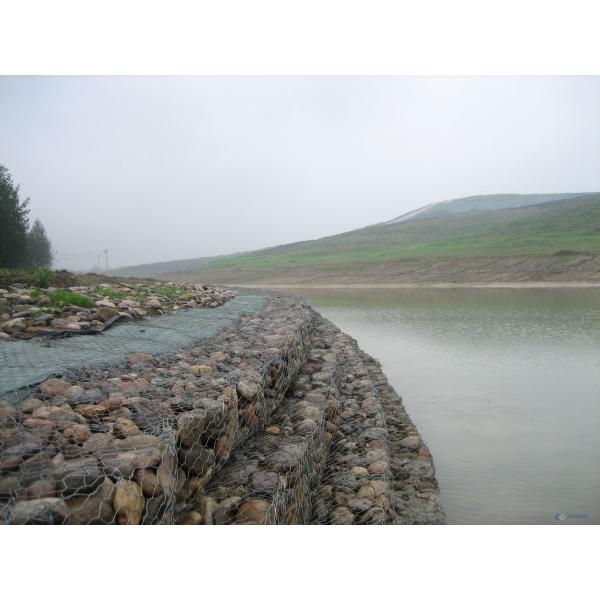

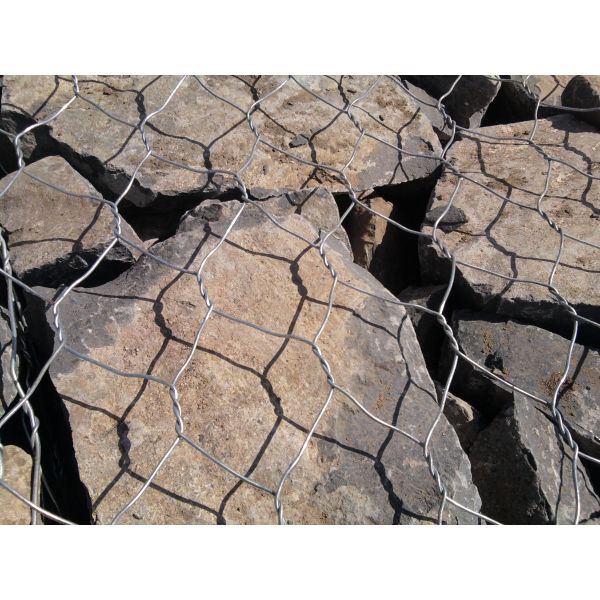

Gabion Basket Images
